Connection adapter 2PC

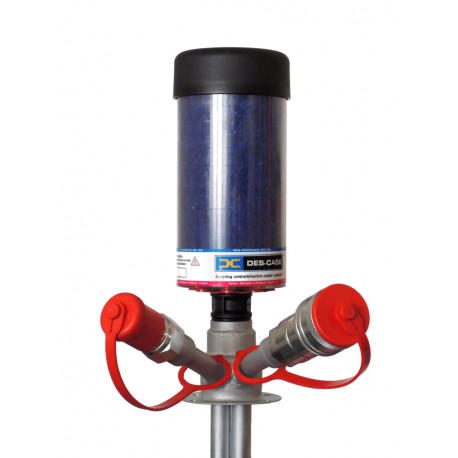

Double pipe connection adapter with inlet pipe extension and quick couplings.
Breather filter is not included. You can select one of the Des-Case breathers.
These adapters are our own production - if you need some modification or different accessories, do not hesitate to contact us.
Double connection pipe adapter for easy connection of the oil cleaning unit to your hydraulic oil tank. The adapter is placed instead of the standard refilling port on the oil tank.
1" mounting ventilation port the breather filter. You can select from the variety of Des-Case breathers. The most popular is a combination with DC-3, DC-4 and ND-35. For larger hydraulic systems are suitable Des-Case Extended Series breathers.
The length of the pipes into the oil tank is 30 cm, the inner pipe diameter is 15 mm to ensure a high oil flowrate (up to 15 l/min). The outlets are terminated with 3/4" nipples with quick connection couplings - male and female.
Inlet pipe is extended with 0,7 m of hydraulic hose to ensure most effective oil cleaning process.
1" mounting ventilation port the breather filter. You can select from the variety of Des-Case breathers. The most popular is a combination with DC-3, DC-4 and ND-35. For larger hydraulic systems are suitable Des-Case Extended Series breathers.
The length of the pipes into the oil tank is 30 cm, the inner pipe diameter is 15 mm to ensure a high oil flowrate (up to 15 l/min). The outlets are terminated with 3/4" nipples with quick connection couplings - male and female.
Inlet pipe is extended with 0,7 m of hydraulic hose to ensure most effective oil cleaning process.
Please choose 2PA type if you want adapter without inlet pipe extension and without quick conn. couplings.
Please choose 2PB type if you want adapter with inlet pipe extension but without quick conn. couplings.
Please choose 2PB type if you want adapter with inlet pipe extension but without quick conn. couplings.
2PC
Data sheet
- Detail
- připojovací adaptér 2PA + prodlužovací hadice na sání 70 cm + 2 ks rychlospojky + 2 ks zátka
