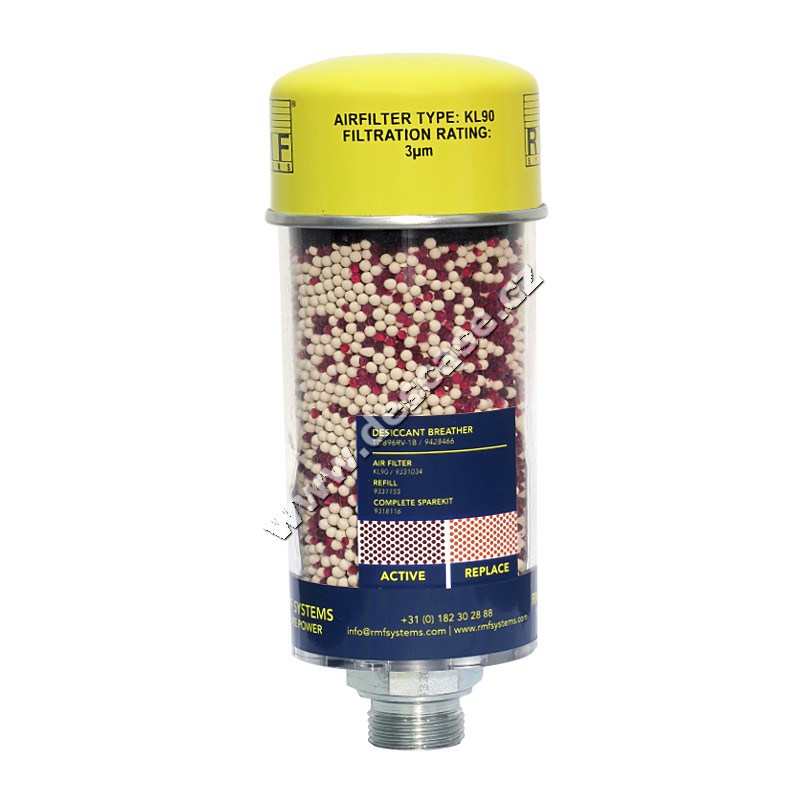

RMF TDB96RV-34B TITAN VERSION
3/4’’ BSP male, with check valves, max air flow 300 l/min.
Full injection moulded body 600 cc Z-R gel, max air flow 300 l/min, 3/4’’ BSP male. With spring loaded ( 0,01 bar ) check valves fitted in the base in opposing directions. Integrated anti-splash device.
TDB96RV-34B 9428074
Data sheet
- Unit Height
- 243 mm
- Unit Diameter
- 100 mm
- Connection Size
- 3/4" BSP male
- Max. Flow Rate
- 300 l/min
- Amount of Silica Gel
- 600
- Adsorption Capacity
- 172 g
- Filter Efficiency
- 3 μm
- Weight
- 1100 g
- Check Valves
- Yes
